Stainless Steel Instrumentation Tubing Supplier

JW Industrial Solutions supplies stainless steel instrumentation tubing for process, energy, marine, hydrogen, OEM equipment, and control-system applications. Products include seamless and welded coiled tubing, bright-annealed straight tubing, PVC / PTFE jacketed stainless steel tubing, and project-specified pre-insulated tube bundles.

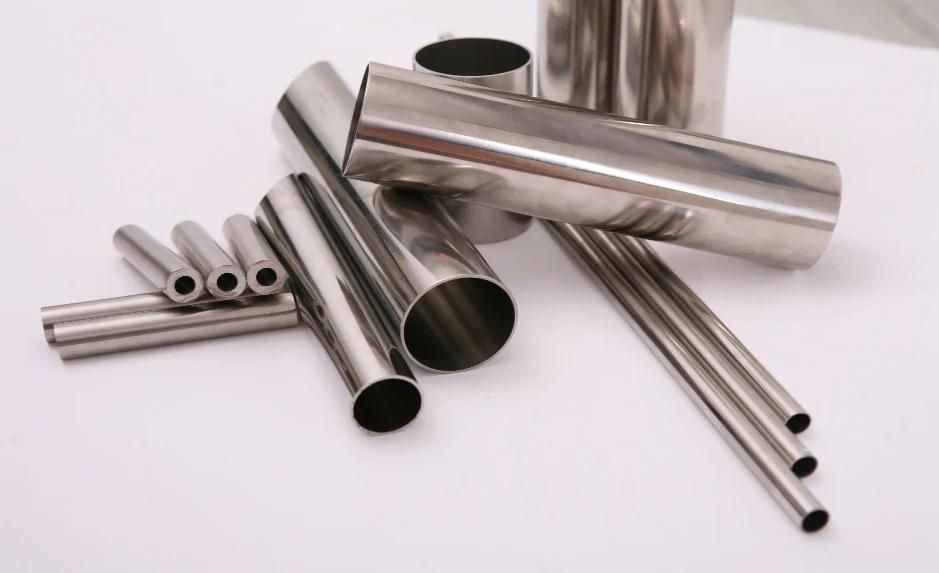

Straight stainless steel tube samples showing different outside diameters and wall sections — Straight tube samples showing different diameter and wall-section combinations. The drawing defines the ordered dimensions.

Product Options

ASTM A269 seamless coils: TP304L and TP316L, 1/4 inch to 1 inch OD, with continuous lengths up to 1,000 m
ASTM A249 welded coils: TP201, TP304/304L, TP316/316L, and specified grades, 1/8 inch to 2 inches OD
Bright-annealed straight tubing: seamless or welded, 1/8 inch to 4 inches OD
Protected tubing: PVC / PTFE jacketed stainless steel tubing and pre-insulated tube bundle configurations

Manufacturing and Surface Control

Processes include bright annealing, laser and TIG welding, online cold drawing, CNC bending, end forming, and fabrication. Bright-annealed finish with Ra ≤ 0.4 μm is available within the applicable range.

Inspection and Testing

Verification can include dimensional and endoscopic inspection, weld-line monitoring, PMI, eddy-current testing, hydrostatic testing, and air-pressure testing. Order documentation is available according to requirements.

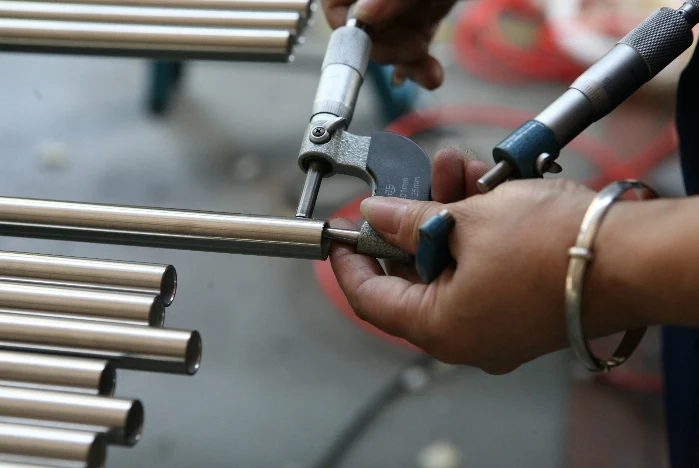

A micrometer used to check the outside diameter of a straight stainless steel tube — Outside-diameter measurement with a micrometer. Measurement locations and acceptance limits follow the agreed inspection requirements.

Start Your Enquiry

Enquiries are welcome in any format. Please send your design drawings for custom tube components; drawings are required for quotation and production. You do not need to repeat information already shown on the drawing. Operating conditions, such as the service environment and frequency of use, are helpful if available. Email info@jwindustrialsolutions.com, and a specialist will follow up with you.

Frequently Asked Questions

Can JW supply continuous instrumentation tubing?

Yes. The published seamless range includes lengths up to 1,000 m per coil within the dimensional and weight limits.

Are seamless and welded products available?

Yes, including ASTM A269 seamless and ASTM A249 welded coiled tubing.

Are protected configurations available?

PVC / PTFE jacketed stainless steel tubing and project-specified pre-insulated tube bundles are available for review.

Explore PVC / PTFE jacketed stainless steel tubing and tube bundles or send an RFQ.

Quotations include products and accessories (including hydraulic-cylinder seals), all certificate costs and transportation to the quoted destination. Standard custom-product payment: 30% advance, 70% before shipment. Quotes are available in your requested currency and format. See our quotation and payment terms.
