Stainless Steel Tube Fabrication & Prefabrication

JW Industrial Solutions supports OEM manufacturers that need more than bulk stainless steel tubing. Instead of importing straight lengths or coils and arranging every secondary operation locally, buyers can request a project-specific package that combines tube supply, processing, inspection, marking, and packing.

This approach is designed for heat exchangers, instrumentation systems, marine equipment, process skids, energy projects, cooling systems, and repeat OEM assemblies where finished dimensions and installation-ready organization matter.

Tube + Processing + Prefabrication

The starting material can be selected from the applicable seamless or welded stainless steel tubing range. The finished manufacturing route is then reviewed against the drawing, tolerances, service conditions, inspection requirements, and order quantity.

Cut-to-length stainless steel tubing: finished pieces supplied to the agreed drawing, end condition and packing plan. JW offers high-precision cutting with length tolerances as tight as ±0.05 mm, subject to the part, material, dimensions and feasibility review of the approved drawing.
Stainless steel U-tubes: project-specific U-bending reviewed against tube grade, diameter, wall thickness, bend radius, leg length, heat-treatment, and inspection requirements.
CNC bent tube components: repeat geometries manufactured from approved drawings, with samples approved before batch production.
End forming and welding: ends, interfaces, or assemblies reviewed according to the product drawing and acceptance criteria.
PVC / PTFE jacketed stainless steel tubing: external jacketing and identification reviewed against the drawing, with PVC or PTFE material requirements confirmed for the application.
Pre-insulated and multi-tube bundles: tube count, insulation, outer protection, identification, termination, and continuous length defined by project.
Machined fittings or mating components: drawing-based parts can be reviewed as part of a coordinated OEM assembly.
Cleaning, marking, and project packing: scope and acceptance method agreed before production.

Tube Fabrication and Assembly Examples

Explore tube assembly details and internal profiles in these product examples. For custom tube fabrication, the finished configuration is reviewed against your design drawing; the images are not a substitute for an approved specification.

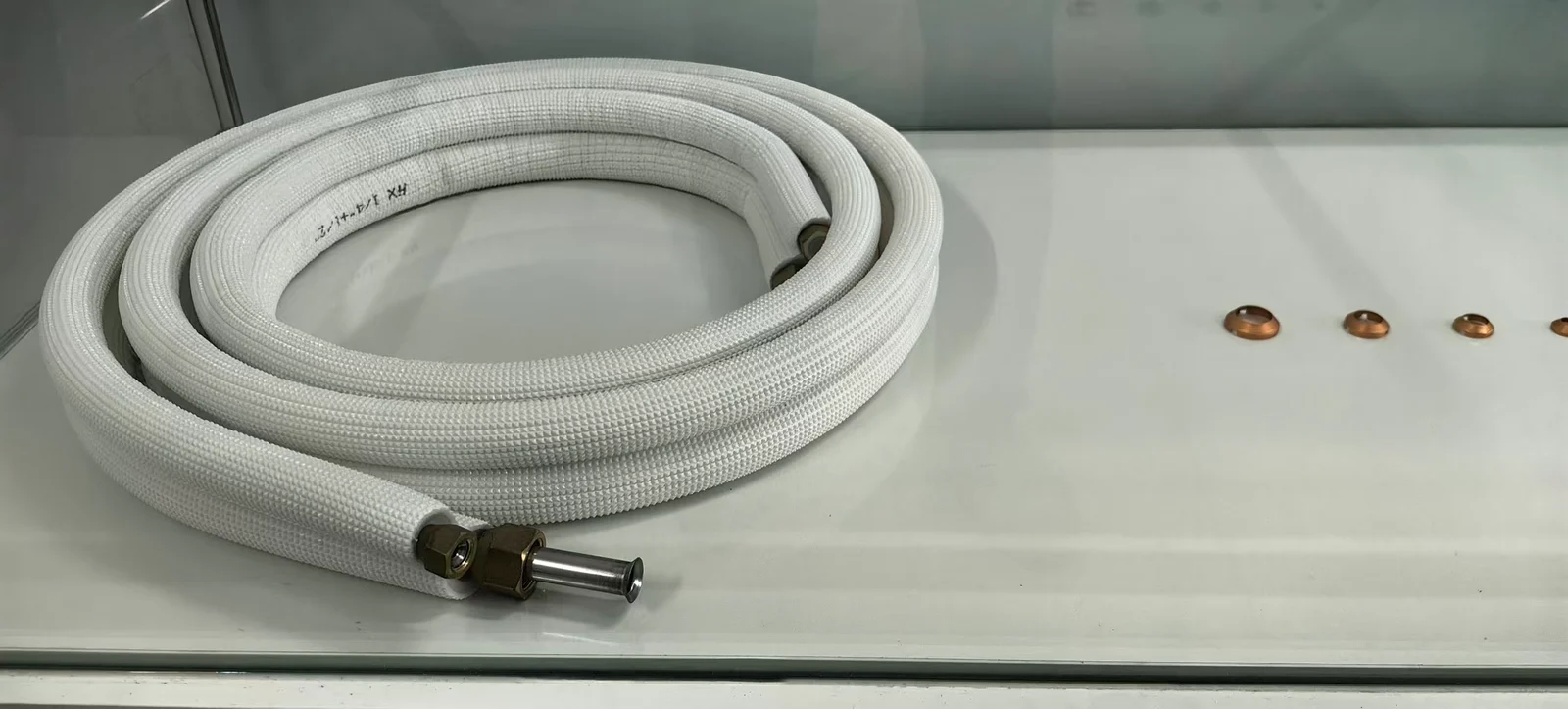

Sleeved Coiled Tube Assembly

Coiled tube assembly with white woven sleeving and metal end fittings on a workbench — A coiled tube assembly with woven sleeving and end fittings. Tube dimensions, sleeve material and connection details are reviewed against the customer drawing.

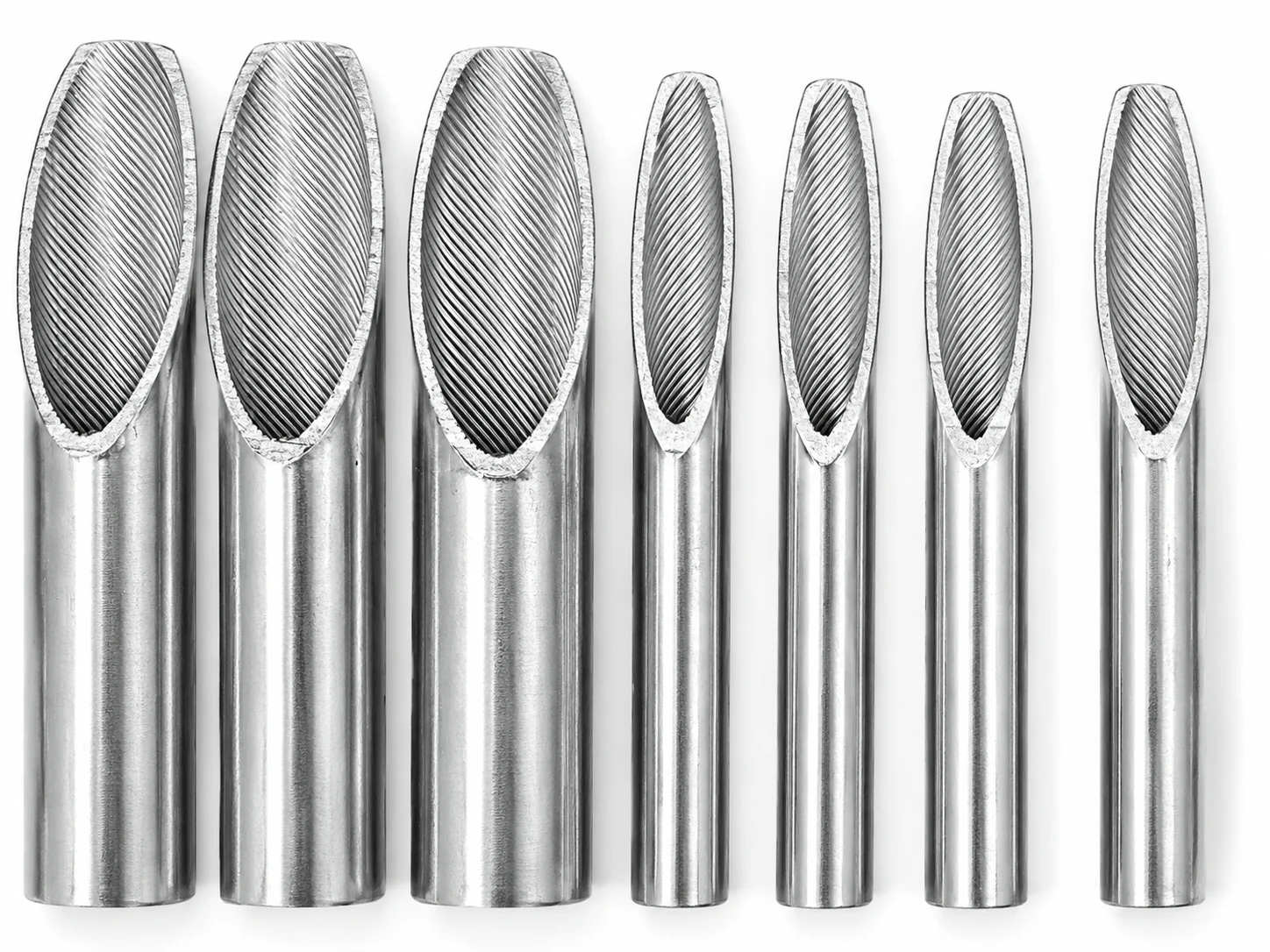

Internally Grooved Tube Samples

Seven tube samples with angled cut ends exposing spiral grooves on their inner surfaces — Tube samples with cutaway ends revealing an internal spiral-groove profile. Material, internal geometry, dimensions and inspection requirements are confirmed for each project.

U-Tube Bundle Assemblies

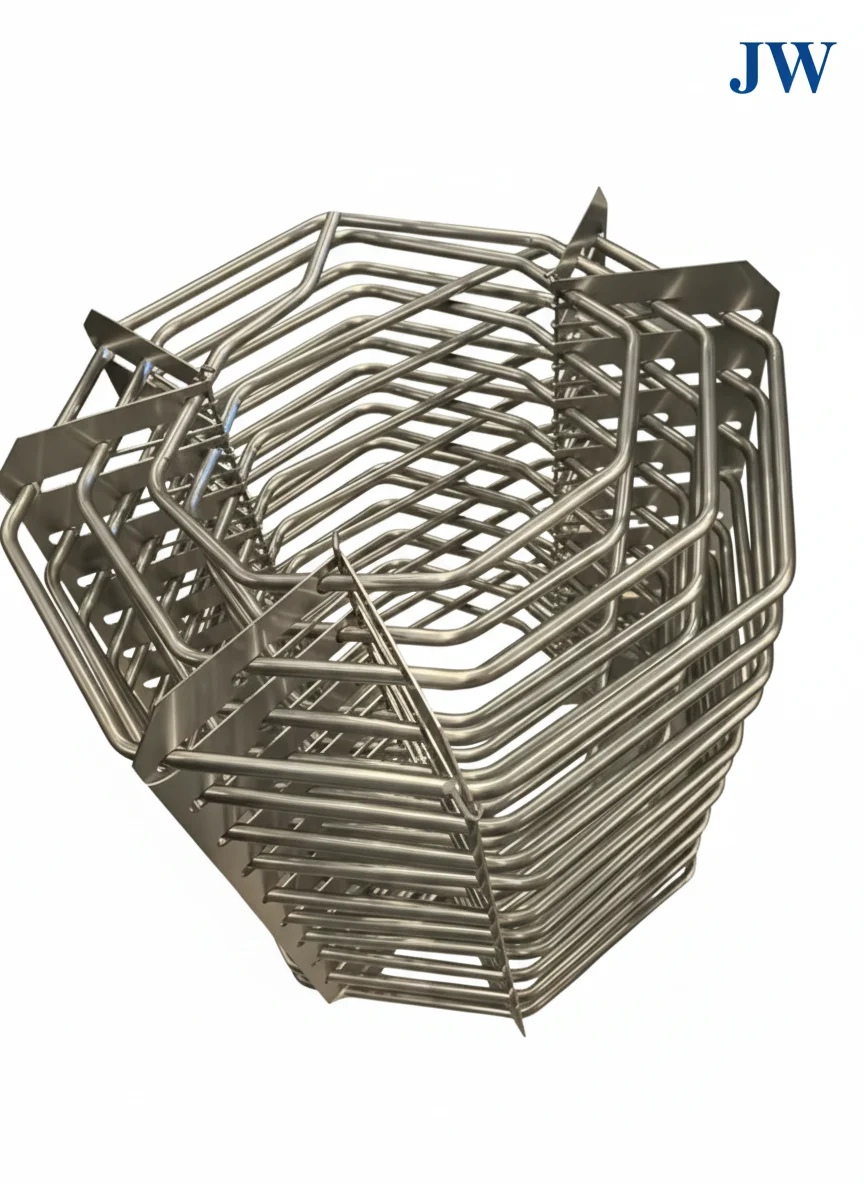

Multi-Bend Tube Assembly with Support Brackets

Multi-bend tube assembly with shaped tube runs held by metal support brackets — A formed tube assembly with multiple bends and support brackets. Bend geometry, tube spacing, mounting interfaces and inspection scope are confirmed for the project.

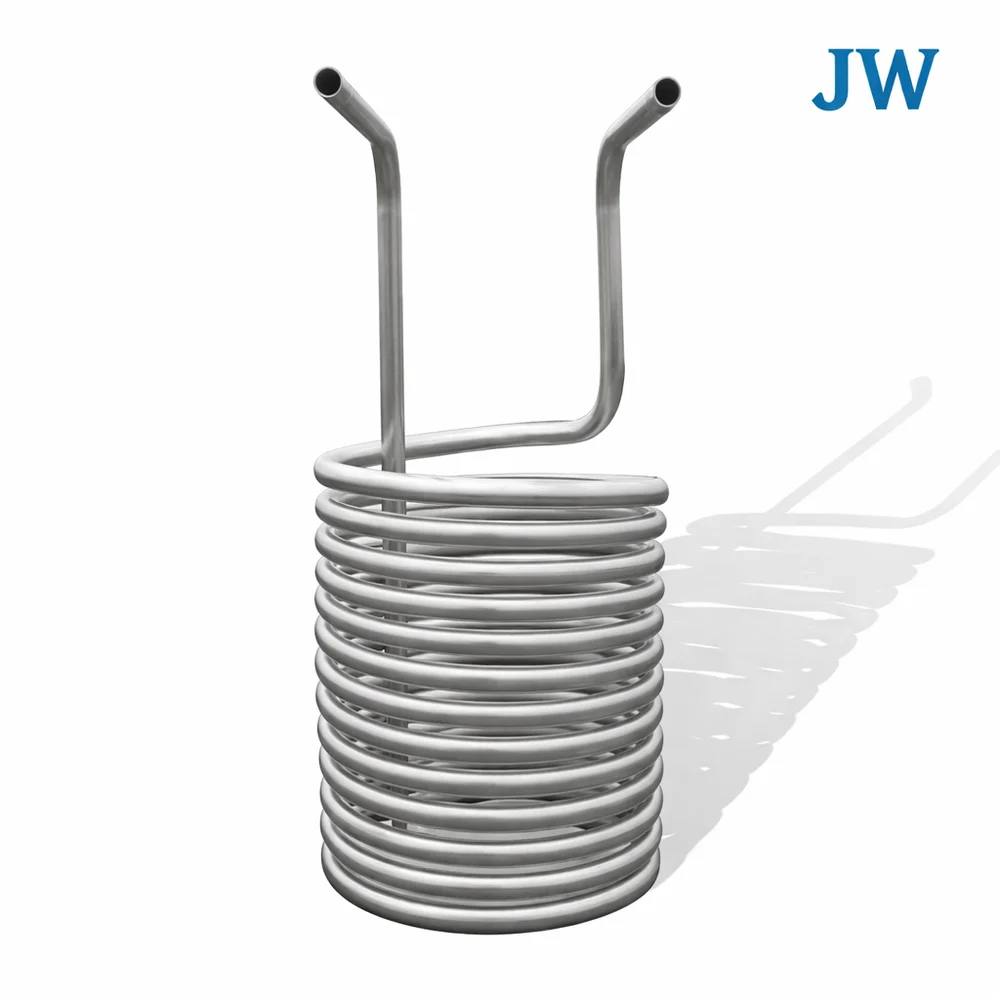

Helical Tube Coil with Formed Ends

Helical tube coil with two formed tube ends extending upward — A helical tube coil with formed inlet and outlet ends. Coil dimensions, turn spacing and end orientation follow the approved drawing.

Fabricated Tube Component Gallery

Compare coil shapes, formed profiles and assemblies in these product photographs. For a custom part, dimensions, material, end connections, supports and inspection requirements follow the approved drawing. The images illustrate configurations, not a standard-size catalogue or certification for a particular application.

Browse: Coils · Formed profiles · Assemblies

Coils and Formed Connections

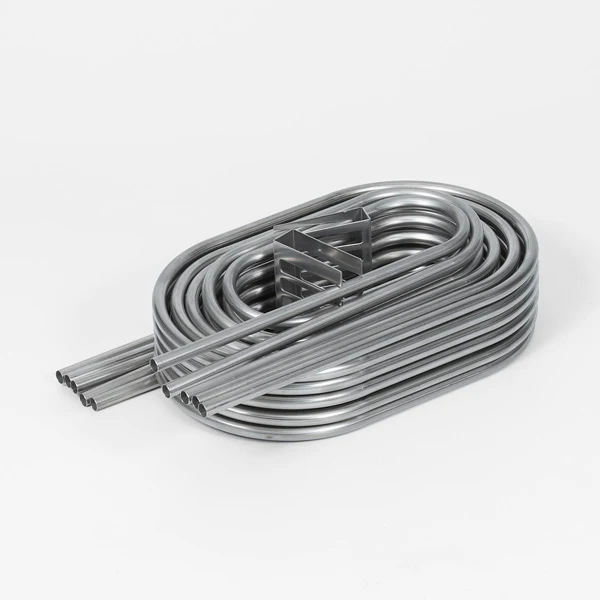

Nested Oval Tube Coils

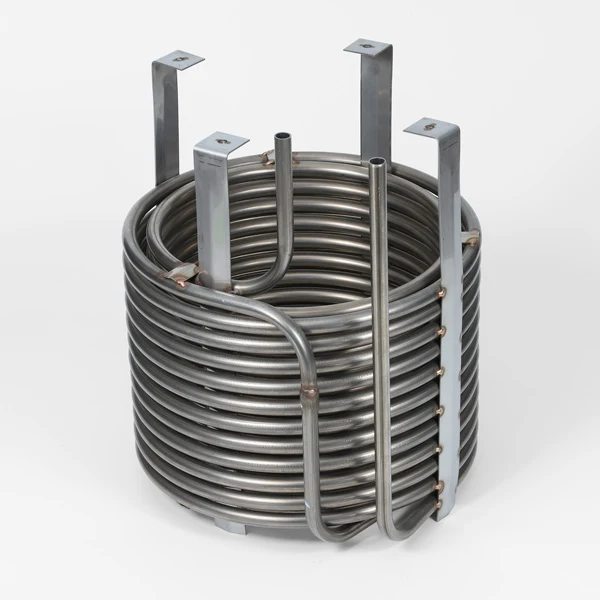

Helical Coil with Mounting Supports

Helical tube coil held by four upright mounting supports with formed tube ends — A helical coil with formed ends and upright supports illustrates coordinated coil geometry and mounting interfaces.

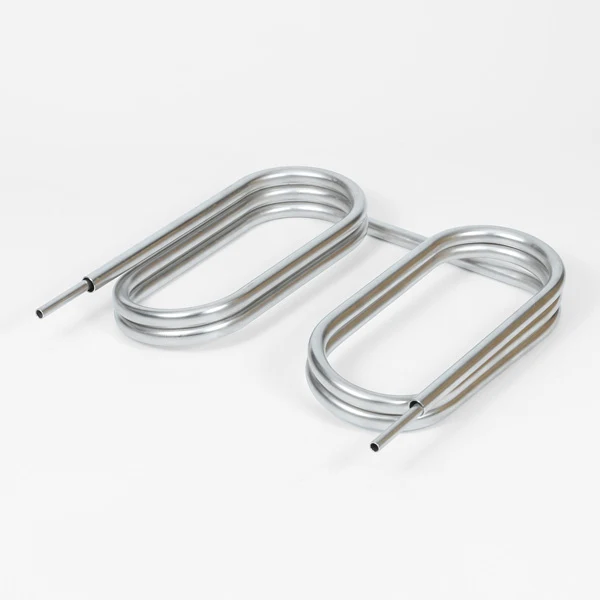

Paired Oval Tube Coils

Two oval tube coils joined by a connecting section with extended tube ends — Paired oval coils show a connected arrangement with extended tube ends.

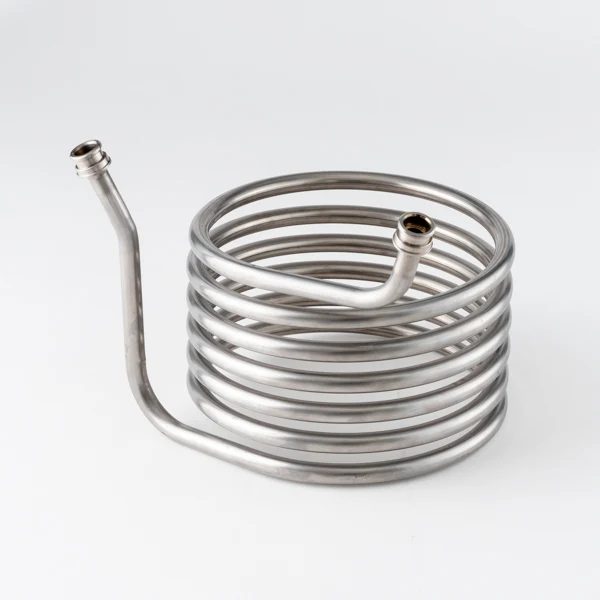

Helical Coil with Connector Ends

Helical tube coil with two raised ends and connection fittings — A helical coil with raised connection ends. Fitting type, end orientation and joint requirements are confirmed on the drawing.

Bent and Serpentine Tube Profiles

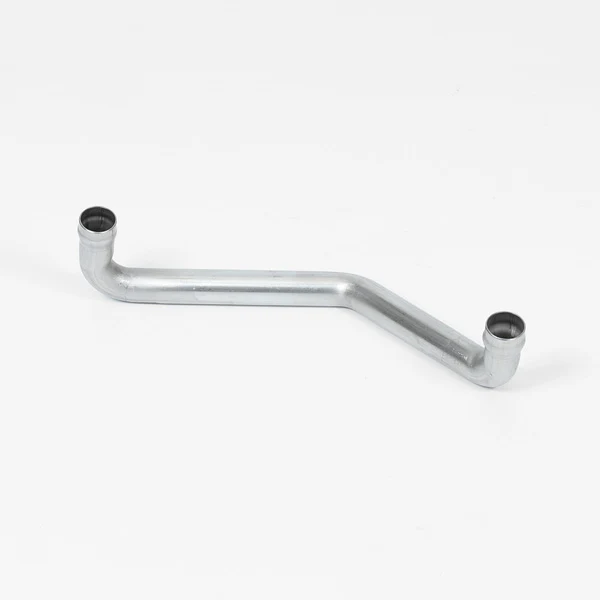

Offset Formed Tube Component

Offset bent tube component with two upturned open ends — An offset tube component with two upturned ends illustrates bend placement and interface orientation.

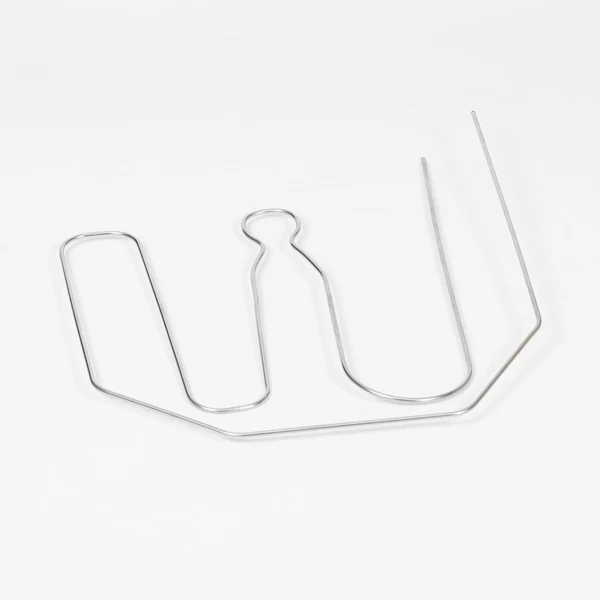

Formed Tube Profile Examples

Several formed profiles show different bend sequences and return shapes.

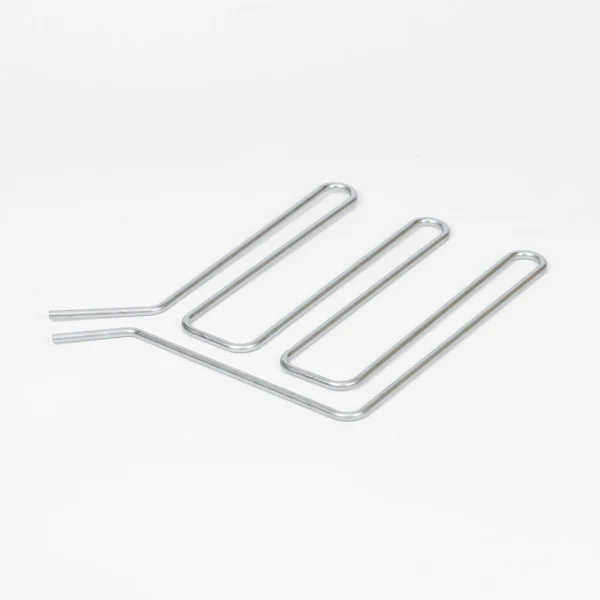

Serpentine Tube Component

Tube Assemblies and Workshop Examples

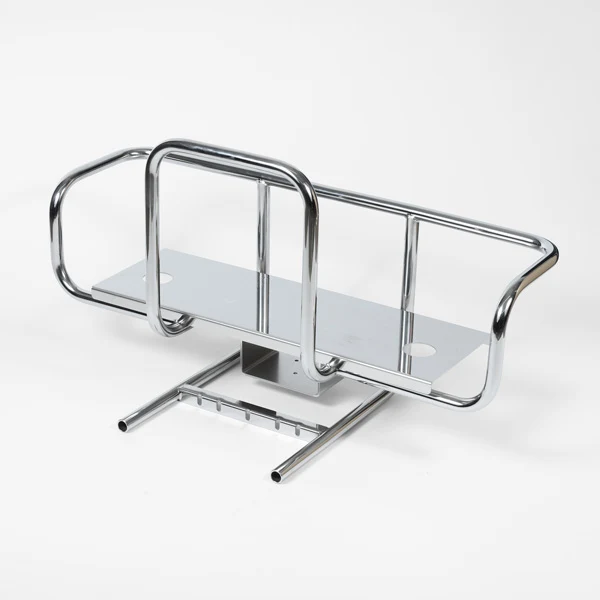

Tube Frame and Plate Assembly

Formed tube frame combined with a rectangular plate and support brackets — A formed tube frame combined with a plate and brackets illustrates a multi-component assembly.

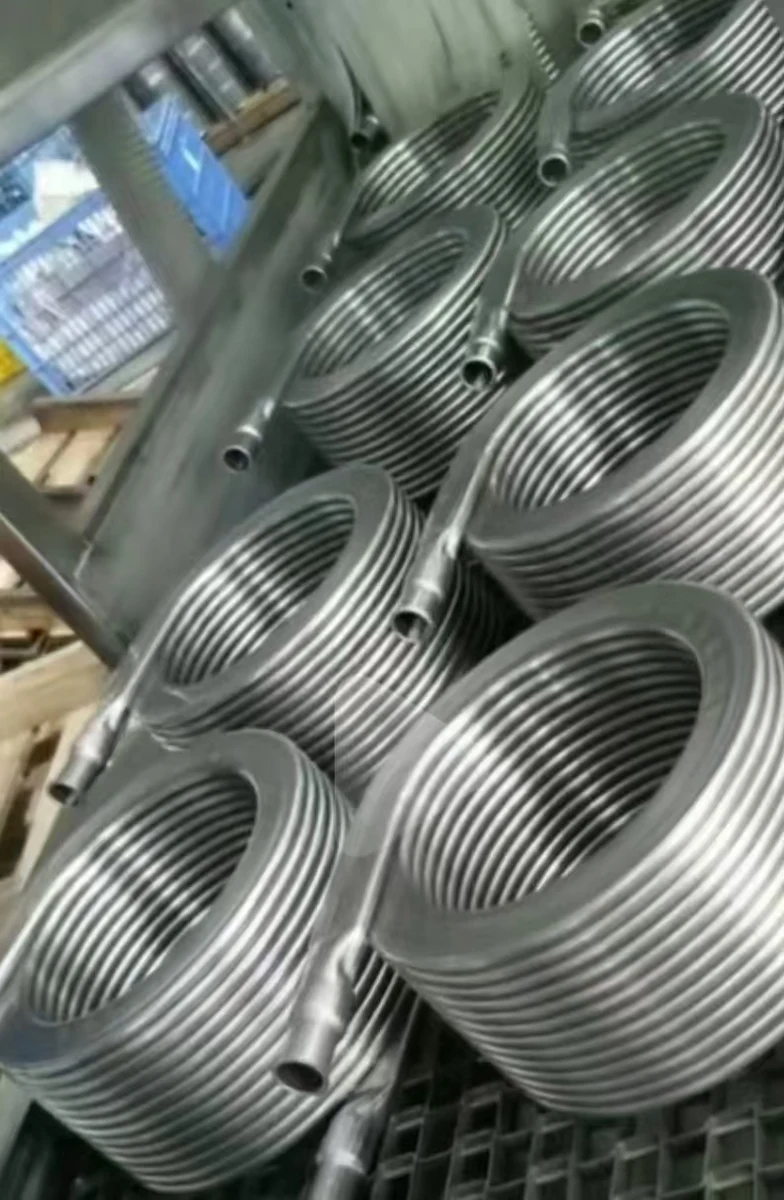

Formed Coils in a Workshop

Several formed tube coils with projecting ends arranged on a workshop rack — Multiple coils arranged in a workshop show repeated formed geometries. The photograph is an example of configuration, not an inspection or acceptance record.

For a related component, send your design drawings in your preferred enquiry format. Operating conditions are helpful if available; a specialist will follow up by email.

Tube Fabrication for OEM Applications

The finished component, not just the starting tube grade, defines the fabrication review. These application paths connect the processing options above with the requirements of your equipment:

Heat exchangers: review cut lengths, U-bend geometry and end connections together with the agreed inspection scope. Explore heat exchanger tubing and U-tube components.
Automotive components: review tube blanks, bent parts and end-formed interfaces against the assembly drawing, with samples approved before batch production. See stainless steel tubing for automotive components.
Food-processing equipment: distinguish product-contact parts from utility or heat-transfer circuits when reviewing surface condition, cleaning and fabrication. See food equipment tubing applications.
Pharmaceutical equipment: identify whether the drawing covers a utility, cooling or product-contact component so the finish, cleanliness and documentation can be reviewed for that service. See pharmaceutical equipment tubing applications.

Industry use alone does not establish certification or application approval. Any special requirements are confirmed for the individual project. Send your drawings in any enquiry format; operating conditions are helpful if available.

Looking for tube supply before secondary processing? Compare stainless steel tubing sizes and supply forms. Starting-tube ranges do not define every finished-part tolerance.

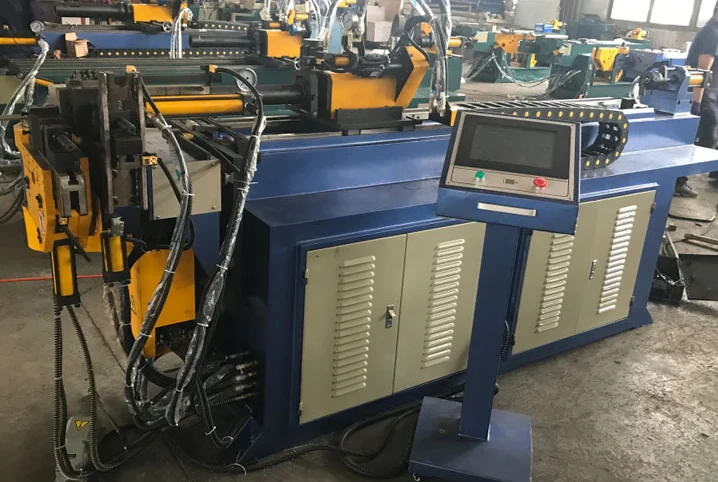

Tube bending machine with workholding tools and a control panel in the workshop — Tube bending equipment. Bend geometry and tooling requirements are reviewed against the approved component drawing.

Tube Fabrication Videos: Forming and Cut-to-Length Processing

Watch workshop demonstrations of tube forming, straight-tube feeding and cut-to-length processing. The edited videos retain the original portrait framing, with no audio. They illustrate processing operations; material grade, finished geometry and acceptance criteria remain specific to the approved drawing.

Tube Bending and Coil Forming

42 seconds · Silent video — no audio

0:00–0:25 — Tube bending at the machine. 0:25–0:42 — Coil forming from a separate workshop clip.

The first sequence shows a tube being positioned and bent around tooling. The second shows a tube being formed into successive coil turns. These are two separate workshop examples, not a continuous production route for one part.

For a forming enquiry, send the design drawing in your preferred enquiry format. Service environment and frequency of use are helpful additional context, if available.

Cut-to-Length Tube Processing

20 seconds · Silent video — no audio

0:00–0:20 — A continuous excerpt showing tube processing and collection of short pieces.

Short tube pieces are discharged from processing equipment into a collection tray while fluid flows around the working area. The excerpt shows repeated production of cut pieces; finished length, end condition and cleanliness are specified separately for each order.

JW offers high-precision cutting with length tolerances as tight as ±0.05 mm, subject to the part, material, dimensions and feasibility review of the approved drawing. Send the finished-part drawing; there is no separate RFQ checklist to complete.

Also explore tube-bore GO plug gauge inspection, in-line laser outside-diameter inspection and the other tubing production and measurement videos. To discuss a finished part, send your tube drawing and enquiry.

Straight Tube Feeding and Precision Cutting

53.1 seconds · Silent video – no audio

Straight tubes advance from a feed bed towards the cutting station, with fluid visible around the work area.

Finished length, end condition and acceptance tolerance are confirmed on the approved drawing. This process video is not a dimensional inspection report.

Why Source Finished Tube Components?

Purchasing only raw tube can leave an OEM to manage local cutting, bending, cleaning, inspection, assembly, scrap, scheduling, and multiple subcontractors. A prefabricated package can simplify the bill of materials and reduce handoffs when the finished geometry and quality requirements are stable and clearly documented.

Flexible production can also suit mixed requirements such as several tube sizes, multiple finished lengths, or modest quantities per drawing. Minimum order, tooling, setup, inspection, and packaging requirements are quoted for the actual mix rather than represented as one universal MOQ.

Quote by Finished Part and Project Pack

JW can quote finished tube components from your design drawings, including mixed sizes and small quantities. The following are project-planning topics for review with our team, not additional fields you must complete before making an enquiry:

Part number, drawing revision and piece quantity for each item
Finished length or bend geometry, tolerances and end condition
Cleaning and preservation requirements, end protection and handling limits
Required heat or batch linkage after cutting, forming or assembly
Package labels, quantity per pack, part separation and project or assembly sequence
Required certificate and inspection-record references for the shipment

Agree the proposed packing method and acceptance criteria before production. Project packing can support receiving and assembly planning, but it does not replace the customer’s installation checks. See the repeat-order quality and document-linkage checklist, then send your drawings in your preferred enquiry format.

Quality Control After Fabrication

Forming or assembly can change the dimensions and condition that matter to the final application. The inspection plan can therefore include incoming material identity, heat or batch traceability, cut-length verification, bend geometry, ovality, surface condition, end configuration, cleanliness, visual inspection, and pressure or non-destructive testing where applicable.

Approval drawings, first-article or prototype validation, inspection reports, material certificates, and packing identification can be included when agreed in the project scope.

Outside-Diameter GO-Gauge Check of Short Tube Parts

4.0 seconds · Silent video – no audio

A gloved operator checks short tube pieces with an external GO gauge.

This is a pass/fail size check, not a numerical measurement of the actual outside diameter. Gauge limits and acceptance criteria follow the approved drawing.

For the complementary bore check, watch the existing tube-bore GO plug gauge inspection video.

Materials and Related Tubing

Start Your Tube Fabrication Enquiry

Enquiries are welcome in any format. Please send your design drawings for custom tube components; drawings are required for quotation and production. You do not need to repeat information already shown on the drawing. Operating conditions, such as the service environment and frequency of use, are helpful if available. Email info@jwindustrialsolutions.com, and a specialist will follow up with you.

Stainless Steel Tube Fabrication Order Process

Send your enquiry and drawings. Contact JW in any format with the design drawings for your tube components. Operating environment and frequency of use are helpful additional context, if available.
Receive JW’s quotation. JW reviews the customer drawings and provides a quotation for the requested scope.
Confirm the order. Your acceptance of the quotation establishes the order.
Review free samples. JW provides free samples according to your requirements for approval.
Approve samples, then begin production. Batch production starts after you approve the samples.
Receive the finished components. JW completes production and delivers the order according to the agreed requirements.

Start by emailing info@jwindustrialsolutions.com. A specialist will work with you on the enquiry and order.

Quotations include products and accessories (including hydraulic-cylinder seals), all certificate costs and transportation to the quoted destination. Standard custom-product payment: 30% advance, 70% before shipment. Quotes are available in your requested currency and format. See our quotation and payment terms.

Frequently Asked Questions

Can JW quote small or mixed batches?

Mixed specifications and modest quantities can be reviewed. Feasibility, MOQ, tooling, setup, and inspection cost depend on the exact materials, dimensions, operations, and order pattern.

Can tubing be supplied as finished cut pieces?

Yes. JW offers high-precision cutting with length tolerances as tight as ±0.05 mm, subject to the part, material, dimensions and feasibility review of the approved drawing. The quotation and approved drawing confirm the length tolerance and finished condition for your parts.

Can JW manufacture stainless steel U-tubes?

U-tube requirements are reviewed from the customer design drawing. JW provides samples according to the customer requirements for approval before batch production. Application environment and usage frequency are helpful if available.

How do I request a tube-prefabrication quote?

Send the design drawings in any enquiry format through the request-a-quote page or by email. There is no separate checklist to complete; a specialist will follow up with you.

Heat Exchanger Tube Components

See the dedicated stainless steel heat exchanger tubing and U-tube page for tube selection, specification review, cleanliness, testing, documentation, and RFQ guidance.

Finished Tube Components and Import Planning

For suitable U.S. and European projects, JW prefers delivery of drawing-based, finished tube components to reduce processing at the customer’s facility and simplify receiving and assembly. We can provide drawings, material details and processing information to support the importer’s or customs broker’s review.

Customs classification depends on the goods as imported and the applicable destination-country rules. Fabrication does not automatically change classification or remove duties, trade-remedy measures or quota requirements. Classification, origin and applicable import measures should be confirmed for the actual product before ordering.

Official references: U.S. Commerce AD/CVD guidance and the EU TARIC customs tariff.
